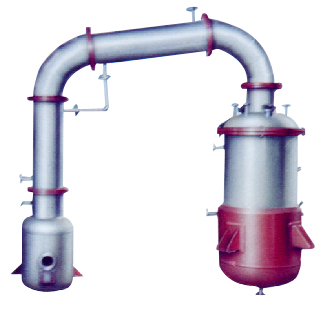

| ZN Type Vacuum Decompression Concentrator | | |
| This device mainly uses for extracting effective ingredient in traditional Chinese medicine through thermal backflow. ZN type vacuum decompression concentrator is the general evaporating device to be widely used in water, alcohol or other organic solvent evaporation and concentration in pharmacy, foods, light industry, chemistry and other industries. The device is suitable for traditional Chinese medicine thermal backflow extraction and concentration, alcohol reclaiming for distillation and evaporation as well as alcohol reclaiming from medicine residue to realize the multi-use in one tank. |
 |
| Project |
ZN-50 |
ZN-100 |
ZN-300 |
ZN-200 |
ZN-500 |
ZN-700 |
ZN-1000 |
ZN-2000 |
| VolumeL |
50 |
100 |
200 |
300 |
500 |
700 |
1000 |
2000 |
| Evaporation Kg/h |
20 |
40 |
50 |
80 |
100 |
130 |
160 |
350 |
| Steam pressure MPA |
＜0.15 |
＜0.15 |
＜0.15 |
＜0.15 |
＜0.15 |
＜0.15 |
＜0.15 |
＜0.15 |
| Vacuum KPA |
＜60 |
＜60 |
＜60 |
＜60 |
＜60 |
＜60 |
＜60 |
＜60 |
| Heating area m2 |
＜0.60 |
＜0.80 |
＜1.00 |
＜1.40 |
＜1.80 |
＜3.00 |
＜4.50 |
＜6.50 |
| Condensation area m2 |
1.2 |
1.7 |
2.4 |
3.2 |
3.5 |
3.6 |
4.5 |
14 |
| Cooling area m2 |
0.25 |
0.35 |
0.45 |
0.6 |
0.7 |
0.85 |
1.2 |
3 |
| Liquid Receiver volume L |
15 |
45 |
50 |
125 |
125 |
125 |
125 |
185 |
| Equipment weight kg |
-350 |
-450 |
-550 |
-850 |
-1200 |
-1500 |
-2000 |
-3000 |
|
