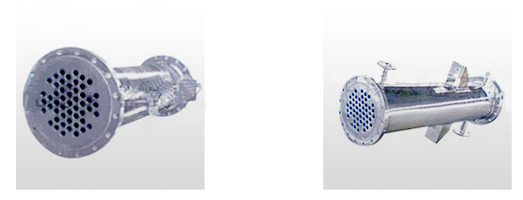

Sanitary condenser

I plant health level condenser by condensing material into carbon steel tube, stainless steel tube carbon steel and stainless steel condenser and mixing tube type condensation of three, divided by the form of a fixed tube plate, floating head, U -tube heat exchanger, according to the structure into a single tube, double tube and multiple tube. Heat transfer area of 0.5-500m2, can be customized according to user needs.

Nominal diameter	Number of tube	Tube number	Heat transfer area nominal value / calculated value					Tube passage area tube channel flow when the flow rate of 0.5m/sec m / hr		Nominal pressure
			Pipe length（m）					φ25×2.5
			1500	2000	3000	4000	6000	φ25×2
159	1	14	1.51.62	22.17	33.27			0.0044/0.0049	7.92/8.82	0.25
219	1	26	3/3.00	4/4.02	6/6.06	8/8.1		0.0082/0.0090	14.76/16.20	0.6
	2	26	3/3.00	4/4.02	6/6.06	8/8.81		0.0041/0.0045	7.38/8.01	1.0
273	1	44	5/5.08	7/5.18	10/10.26	14/13.72	21/20.63	0.0138/0.0152	24.84/27.36	1.6
	2	40	5/4.62	6/6.19	9/9.33	12/12.47	19/18.76	0.0063/0.0069	11.24/12.42	2.5
325	1	60	7/6.93	9/9.28	14/14.00	19/18.71	28/28.13	0.0188/0.0208	33.84/37.44	0.6
	2	56	6/6.47	9/8.66	13/13.05	17/17.46	36/26.26	0.0088/0.0097	15.84/17.46	1.0
400	1	119	14/13.47	18/18.41	28/27.76	37/37.10	55/55.8	0.0374/0.0412	67.32/74.16	1.6
	2	110	13/12.70	17/17.02	26/25.66	34/34.20	50/51.58	0.0173/0.0190	31.14/34.20	2.5
500	1	185			45/4.15	55/57.68	85/86.74	0.0581/0.0641	104.58/115.38
	2	180			40/41.99	55/57.68	85/86.74	0.0283/0.0312	50.94/56.16
600	1	269			60/62.7	85/83.88	125/126.13	0.0845/0.0932	152.10/167.76
	2	266			60/32.05	80/82.94	125/14.72	0.0418/0.0461	75.24/83.98
700	1	379			90/88.41	120/118.17	175/177.71	0.0091/0.1313	214.38/236.34
	2	358			85/83.51	110/111.62	165/167.85	0.0562/0.0620	101.16/111.60
800	1	511			120/119.20	160/159.16	240/239.60	0.1605/0.1770	288.90/318.60
	2	488			115/113.83	150/152.16	230/228.81	0.0767/0.0845	138.06/152.10
900	1	649			150/151.39	200/202.36	305/304.3	0.2039/0.2248	367.02/404.46
	2	630			145/146.96	195/196.44	295/295.40	0.0990/0.1091	178.20/196.38
1000	1	805			185/187.78	250/251.00	375/377.45	0.2529/0.2788	455.22/501.74
	2	792			185/184.75	245/246.95	370/371.36	0.1244/0.1374	223.92/246.96
